TV VHF – UHF Panel Antennas
Description
TV VHF – UHF Panel Antennas
TV VHF panels are antennas of great strenght, with stainless steel dipole and hot dipped steel reflector,
PTFE insulators and stainless steel screws. Suitable for high power systems with horizontal or vertical polarization.

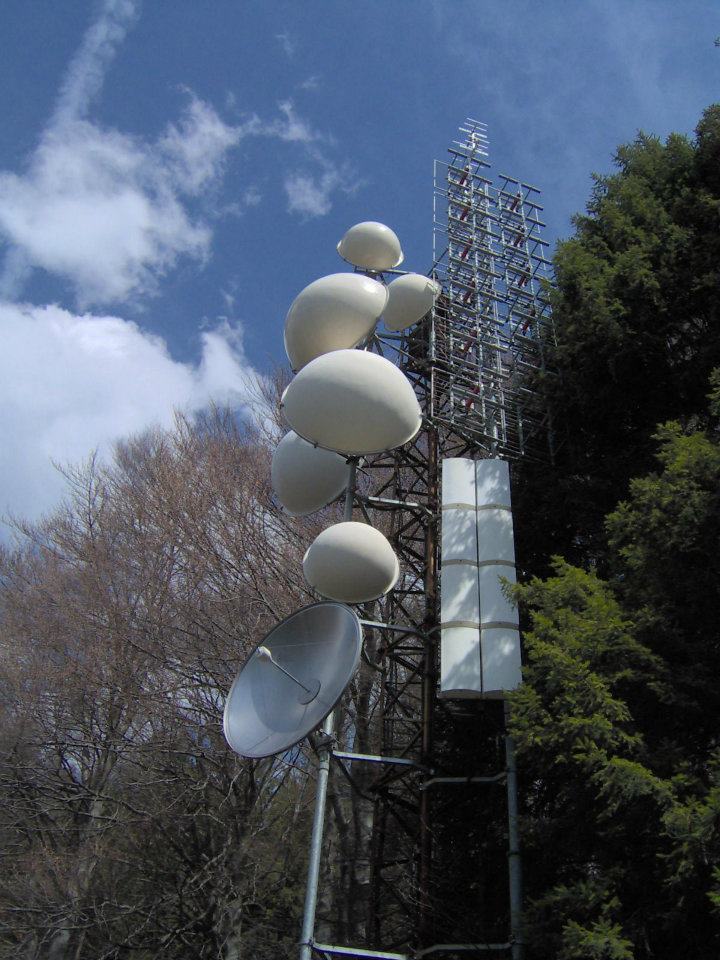

Both, mounted on the 4 faces of a tower, determines omnidirectional radiations diagrams. TV UHF 4 dipoles panels are made of stainless steel with a protective radome.
| FREQ. RANGE (Mhz) | 174 – 225 | 174 – 225 | 470 – 860 | 470 – 860 |
| IMPEDANCE (Ohm) | 50 | 50 | 50 | 50 |
| V.S.W.R. | < 1.2:1 | < 1.2:1 | < 1.3:1 | < 1.3:1 |
| GAIN (dBd) | 7.5 | 7.5 | 13 | 13 |
| CONNECTOR | 7/16 | 7/8 | 7/16 | 7/8 |
| MAX POWER (KW) | 1.5 | 3 | 1 | 2 |
| POLARIZATION | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
| WEIGHT (Kg) | 21 | 22 | 24 | 24 |
| DIMENSIONS (cm) | 124x87x40 | 124x87x40 | 105x45x21 | 105x45x21 |
