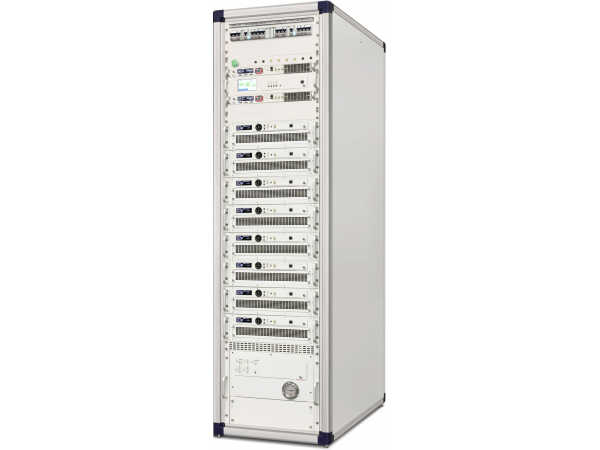

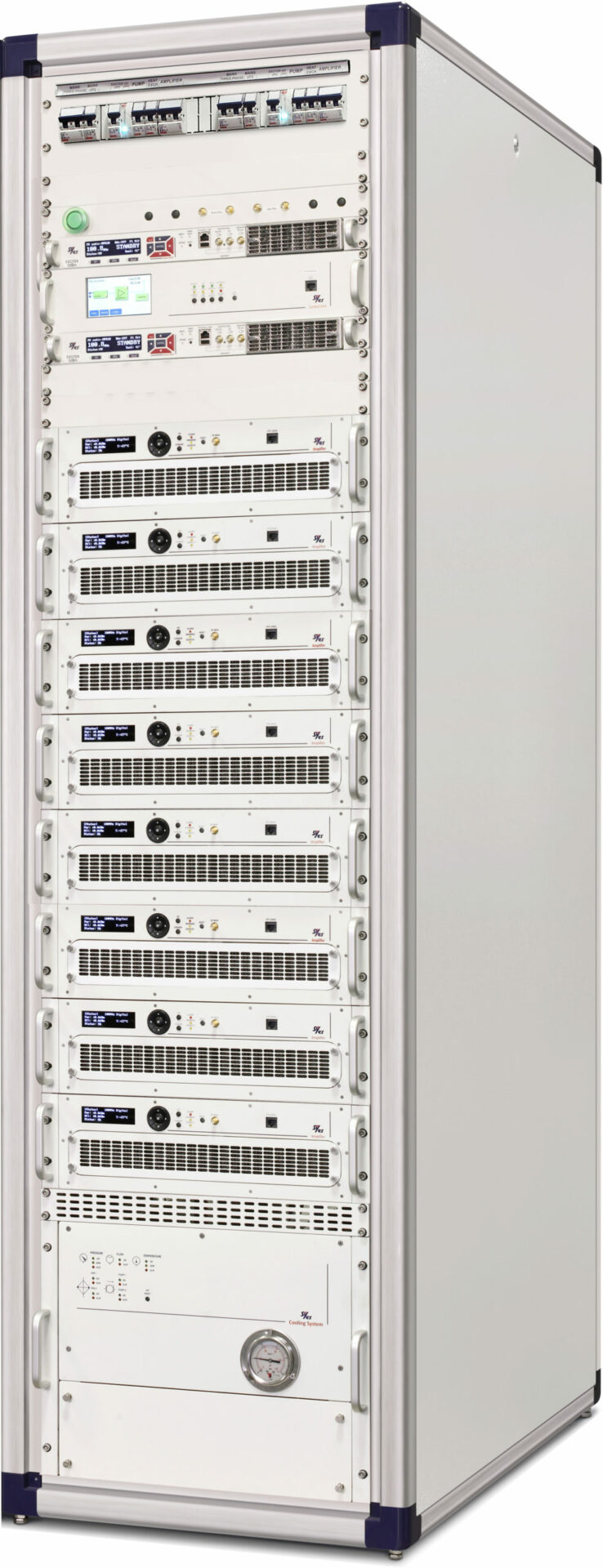

TV TRANSMITTER 20kWps UHF
20,8 kWps Analog
Typology: UHF Band IV & V
The PLine is the Multi Amplifier Liquid Cooled Transmitter family
Pis equipped with Driver Dual Driver Option and N° 8 plug-In Amplifiers.
It is equipped with High Efficiency Wideband UHF/VHF and Low VHF state-of-the-art amplifiers characterized by high-power density and excellent signal quality granting optimal parameters such as shoulder attenuation and MER.
The Pamplifiers are hot pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance
Description
TV TRANSMITTER 20kWps UHF
20,8 kWps Analog
Typology: UHF Band IV & V
The PLine is the Multi Amplifier Liquid Cooled Transmitter family
Pis equipped with Driver Dual Driver Option and N° 8 plug-In Amplifiers.
It is equipped with High Efficiency Wideband UHF/VHF and Low VHF state-of-the-art amplifiers characterized by high-power density and excellent signal quality granting optimal parameters such as shoulder attenuation and MER.
The Pamplifiers are hot pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.
- Multistandard
- High energy efficiency to minimize consumption
- Fully frequency agile without need for any tuning or trimming.
- Automatic digital static or adaptive Linear and Non-Linear Pre-correction.
- Hot Pluggable Power Amplifiers.
- Power Amplifiers with triple redundant Hot Plug-in power supplies.
- Temperature-controlled closed liquid cooled system for better efficiency and performance equipped with Dual Redundant Pump plug-In (tool-free pump swap) and dual-blower heat exchanger.
- Multi input: 2x ASI seamless switch, 2x SAT (S2 with CAMSlot), 2x Ethernet seamless switch.
- USB input to fast save/load configurations.
- Built-in GNSS receiver (GPS, GLONASS, BEIDU, GALILEO) for SFN applications.
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
