Broadcast 5kW FM Power Amplifier
5.000W Compact amplifier
Description

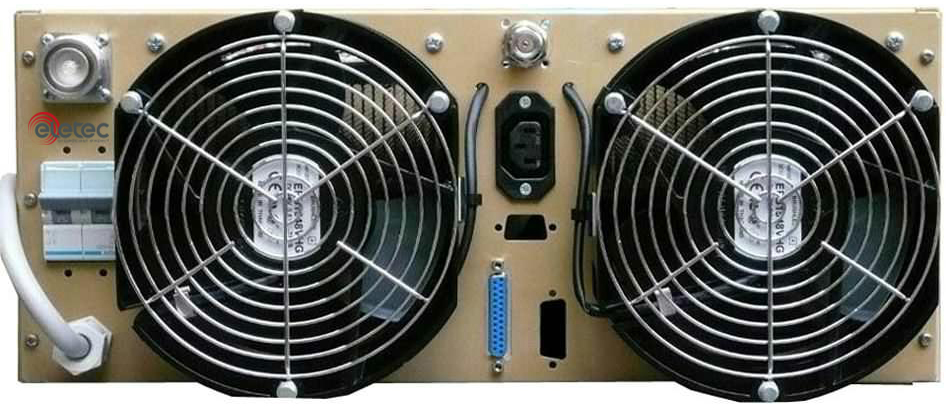

Broadcast 5kW FM Power Amplifier
The EA5000 is a 5KW solid state FM amplifier that uses MOSFET’s of the latest technology.
SOLID STATE FM AMPLIFIER 87.5 – 108 MHz Range
TECHNICAL SPECIFICATIONS
Frequency Range: 87.5-108 MHz
RF input power: 25-35 W max.
RF Output Power: 5000 W ± 0.5dB
RF Output Connector/Impedance: “7/8 EIA ” Flange Connector/ 50 ohm
RF Input Connector/Impedance: “N” Connector/50 ohm
RF monitor connector: BNC
RF monitor attenuation: 54 dB
Harmonic and spurious emission: < -70 dBc ALC
Output power stability: ± 3% AC Input Power: 220-240 Volts Single Phase
Power Consumption: 4700 watts from AC
Overall Dimensions: 19” (483 mm) wide x 9” (228 mm) high x 28” (711 mm ) depth.
Weight: 78 Lbs (35 Kg)
Recommended Ambient Temperature : 0° to 30° C (32° to 85° F)
Maximum Humidity: 90%, non-condensing
* MOSFET technology amplifier.
* High gain PA
* High reliability
* Compact size
* Easily replaceable standard components.
* Advanced recycling overload and protection system.
* Proportional Auto-Foldback of output power in the event of excessive VSWR.
* Full remote control and telemetry capability
