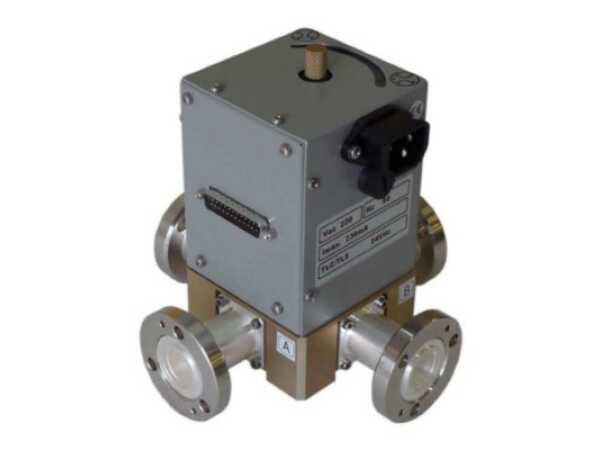

7/8" RF MOTORIZED SWITCH
Description
7/8″ RF MOTORIZED SWITCH
7/8”-4 ways RF Motor Coax. Switcher
Mechanical Characteristics
Input/Output Impedance [Ohm] 50
Insertion Loss [dB] < 0.05
Operating Voltage [Vdc] 85÷264 / 47÷63Hz
Control Voltage [Vdc] 5, 12 or 24
Switch-over Time [s] < 1 EIA 7/8″ FM Radio III IV/V > 40 > 30 > 26
> 80 > 75 > 65
Frequency band
Return loss [dB]
Insulation [dB]
Max. power [W] 5000 3500 2000
