1kw ps UHF TV TRANSMITTER 1000 W

Description

1kw ps UHF TV TRANSMITTER 1000 W

700W COFDM, 850W ATSC, 1000Wps

Typology: UHF Band IV & V

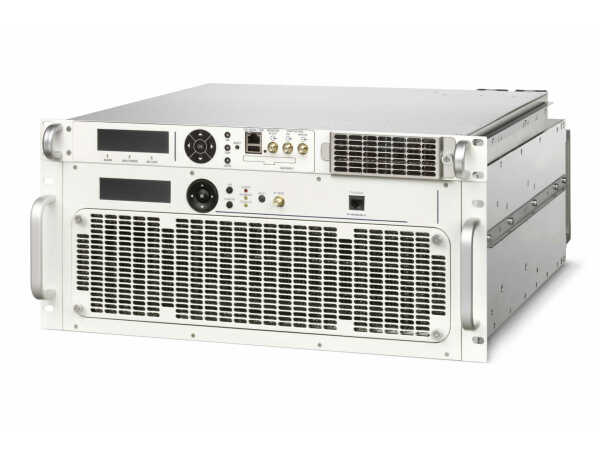

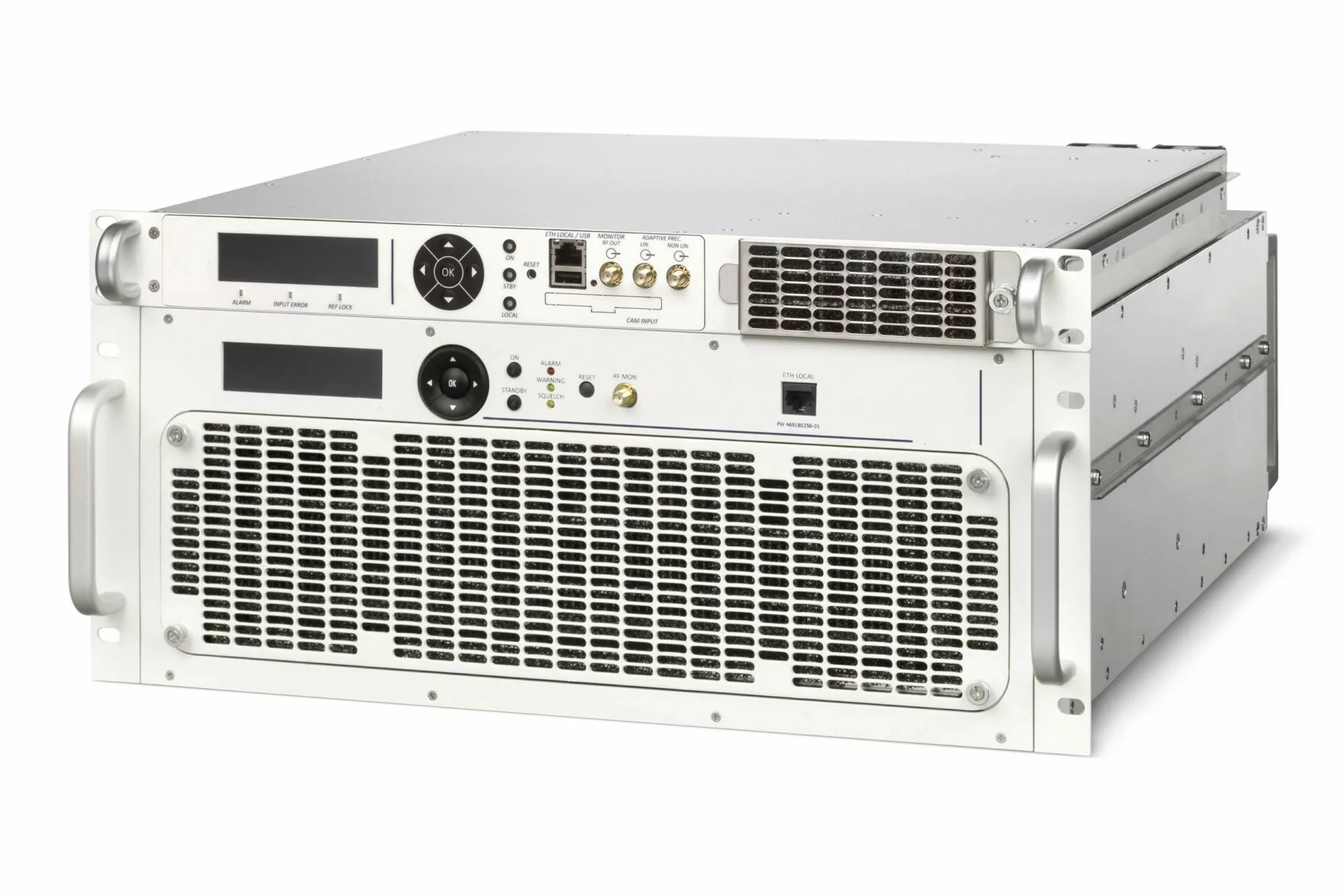

The S/01 UHF HP is the Syes Compact AIR Cooled TV transmitter S Line.
Fully wide band high efficiency with a system efficiency up to 44%.
Composed by one PCM driver (Dual Driver Option) and one (1) S amplifiers.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is next generation of air cooled transmitters, available in band I, Ill and IV-V.
The S family is designed to be the most efficient, robust and high performance amplifiers in the DTV era.
The S amplifiers are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.



  • Multistandard
  • 2x ASI with Hitless switch, 2x IP Ethernet, A/V for analog broadcasting.
  • The most advanced manual, Automatic and Adaptive Linear and Non-Linear Pre-corrector.
  • Fully frequency agile without need for any tuning or trimming.
  • ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
  • USB input to fast save/load configurations.
  • Amplifier equipped with No. 3 Hot Pluggable power supplies.
  • 4 RF Pallets with independent carrier mount, no re-adjustment needed.
  • Overall efficiency up to 44% with highest performances in terms of MER, BER and shoulders.
  • Independent temperature controlled low-noise fans.
  • Use of tools is reduced almost to zero including pallets replacement.
  • Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
