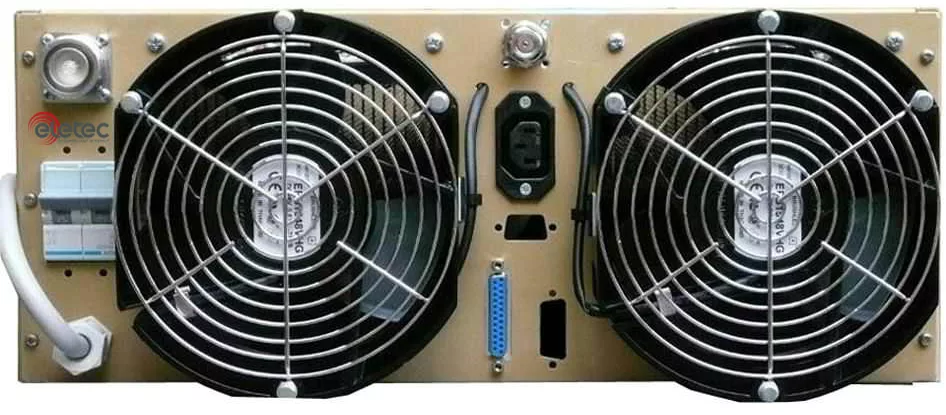

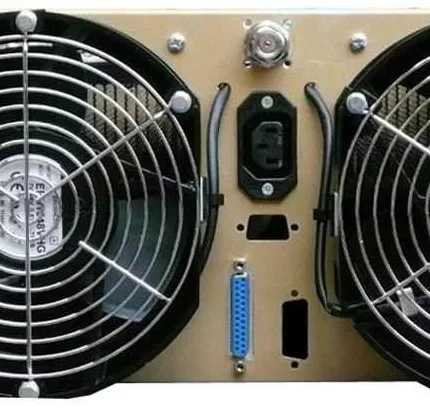

1KW FM Power Amplifier 87.5-108 MHz
The EAG-1000 1kW is solid state FM power amplifier of 1000W
Description
1KW FM Power Amplifier 87.5-108 MHz
The EAG-1000 1kW is solid state FM power amplifier of 1000W
FREQUENCY RANGE: 87.5 ÷ 108 MHz
INPUT POWER: 12W nom./20W max.
OUTPUT POWER: 1000W
MONITOR ATTENUATION OUT: -54 dB Tip.
AM SIGNAL TO NOISE RATIO: -75 dB SYNC. AND ASYNCHRONOUS
INPUT/OUTPUT IMPEDANCE: 50 Ohm
INPUT CONNECTOR: N
OUTPUT CONNECTOR: 7/16
RF MONITOR OUTPUT CONNECTOR: BNC
AC POWER MONO-PHASE: 190 ÷ 264 Vac 50/60 Hz
AC POWER THREE-PHASE: NOT AVAILABLE
AC POWER CONSUMPTION: 1800 VA
MAX CURRENT AUX OUTLETS: 1A @ 230 VAC, no fuse
WORKING TEMPERATURE: 0 ÷ 35° C / -10 ÷ 45° C MAX
WEIGHT: 12kG
DIMENSION: 420wx 135hx 500 mm depth
