FM Transmitters

FM transmitters are devices that take audio signals, typically from a radio station’s studio, and convert them into a frequency-modulated (FM) signal that can be transmitted over the airwaves. These signals are then picked up by radios and other receivers tuned to the station’s frequency. FM transmission is primarily used for radio broadcasting and is characterized by its superior sound quality and resistance to interference compared to AM (Amplitude Modulation) transmission.

Here’s an overview of FM transmitters:

Types of FM Transmitters:

FM transmitters can be categorized based on their power output and usage, such as low-power transmitters for small-scale broadcasts or high-power transmitters for large-scale commercial broadcasting.

1. Low-Power FM Transmitters

• Range: Typically 1 to 10 miles (or 1.6 to 16 kilometers).
• Use: Often used for community radio, educational stations, church broadcasts, or other non-commercial uses. They are also used by hobbyists and individuals for personal radio stations.
• Power Output: Low power, typically between 1W to 100W, suitable for local transmission.
• Cost: Relatively inexpensive compared to high-power transmitters.

2. High-Power FM Transmitters

• Range: Can cover large cities, regions, or even countries, depending on the power and antenna height.
• Use: Commercial radio stations and large broadcasters that need to reach a wide audience.
• Power Output: Can range from 1,000W (1kW) to 80,000W (80kW) or more.
• Cost: These are more expensive, with robust features to handle larger areas and ensure continuous operation.

3. Portable FM Transmitters

• Range: Less than 1 mile (1.6 kilometers).
• Use: Often used for short-range or private broadcasting (e.g., small events, or private radio systems).
• Power Output: Very low, usually below 1W to 20W
• Cost: These are inexpensive and can be purchased for tempory radio or drive-in

Components of an FM Transmitter:

1. Audio Source:

   • This is the audio input that the transmitter will broadcast. This could be live radio hosts speaking, music, or pre-recorded content. Audio can come from various sources like microphones, mixers, or external audio devices.

2. Audio Processor:

   • An audio processor is used to improve the quality of the broadcast signal, applying compression and equalization to ensure clear, consistent audio, even if the signal varies in volume.

3. Exciter:

   • The exciter is responsible for generating the base RF (radio frequency) signal that will be modulated by the audio content. This is a low-power RF signal that serves as the carrier wave, and the audio signal will modulate the frequency of this wave.

4. Modulator:

   • The modulator is where the magic happens: it takes the audio signal and modulates it onto the RF carrier wave. The modulated signal’s frequency varies according to the audio input, resulting in FM transmission.

5. Amplifier:

   • The amplifier boosts the low-power modulated RF signal to a higher power level so that it can reach a wider audience. This is where the power rating of the transmitter becomes important. Low-power transmitters require small amplifiers, while high-power transmitters need larger ones.

6. Antenna:

   • The antenna radiates the FM signal into the air. The design of the antenna (size, number of elements, etc.) depends on the transmitter’s power and the coverage area required. Taller towers with high-gain antennas are typically used for higher-power transmitters to increase coverage.

7. Transmission Line:

   • The transmission line (coaxial cable) carries the RF signal from the transmitter to the antenna. For high-power transmitters, heavy-duty cables are used to minimize signal loss.

8. Cooling System:

   • Since high-power transmitters generate significant heat, a cooling system is often included to maintain performance. It can be air-cooled or liquid-cooled, depending on the transmitter’s power output.

FM Transmission Process:

1. Audio Input: The audio signal, such as music or voice, is sent into the transmitter.
2. Modulation: The audio signal modulates the frequency of the RF carrier wave. In FM (frequency modulation), the audio signal causes slight variations in the carrier wave’s frequency, creating the FM signal.
3. Amplification: The low-power modulated signal is sent through a power amplifier, which boosts the signal to a sufficient level for broadcast.
4. Transmission: The amplified signal is sent to the antenna through a transmission line. The antenna then radiates the signal over a specified area, allowing it to be received by radios tuned to the correct frequency.

FM Radio Frequency Range:

FM broadcasting typically occurs in the 88 MHz to 108 MHz range in the Very High Frequency (VHF) spectrum. Each radio station is assigned a specific frequency within this band to ensure that stations don’t interfere with each other.

FM Transmitter Power Output:

The power output of an FM transmitter determines the size of the coverage area:

• Low-power transmitters (under 100 watts) can serve small, local areas.
• High-power transmitters (1,000 watts or more) can cover large cities or regions.

In most cases, the transmitter’s output is regulated by local laws to avoid interference with other stations.

Common Applications of FM Transmitters:

1. Commercial Radio Broadcasting: Large radio stations use high-power FM transmitters to broadcast to a wide audience across cities or regions.
2. Community Radio: Non-commercial stations, often with low-power transmitters, serve smaller communities or specific audiences (e.g., religious, educational, or local interest groups).
3. Private Broadcasting: Hobbyists or businesses (e.g., small businesses, events, or private use) may use low-power FM transmitters for short-range broadcast.

Advantages of FM Broadcasting:

• Sound Quality: FM provides better sound quality than AM, as it is less susceptible to interference and noise.
• Stereo Broadcasting: FM stations can broadcast in stereo, providing richer sound for music and more engaging listening experiences.
• Interference Resistance: FM signals are less affected by electrical interference and weather conditions than AM signals.
• Wide Adoption: FM broadcasting is widely used, and many listeners are equipped with FM receivers (in cars, phones, radios, etc.).

FM Transmitter Regulatory Considerations:

• Licensing: In most countries, FM transmitters must be licensed by a regulatory body (e.g., FCC in the U.S. or Ofcom in the UK). Unlicensed use of FM transmitters, especially those with high power, can result in legal penalties.
• Frequency Allocation: Transmitters must broadcast on designated frequencies, and power output must comply with regulations to avoid interference with other broadcasters.
• Interference: Broadcasting on the wrong frequency or exceeding the legal power output can interfere with other radio stations or services (like emergency communication), which is illegal.

FM Transmitter Manufacturers & Brands:

Some of the most well-known manufacturer & provider of FM transmitters include:

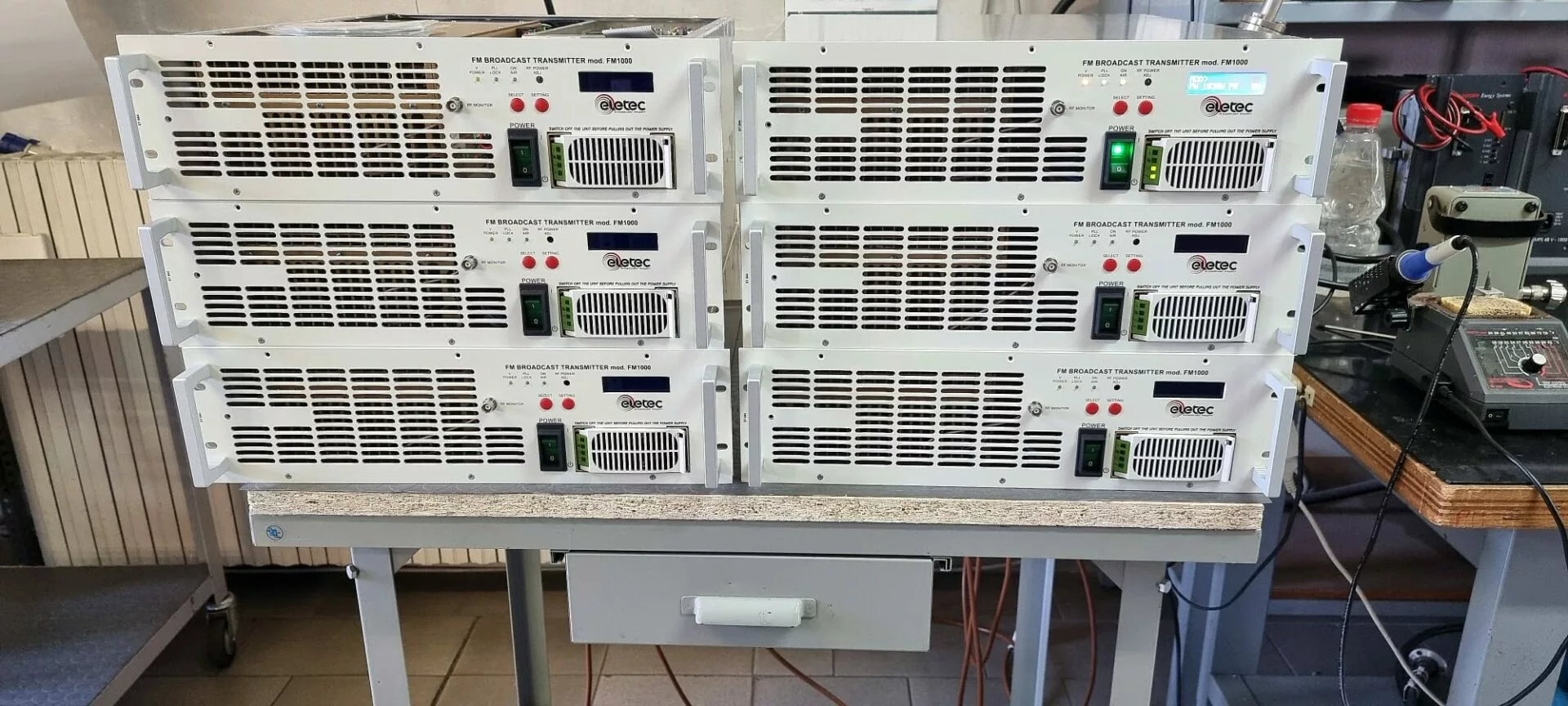

• Eletec

These brands offer a variety of transmitters ranging from low-power units for small stations to high-power transmitters for commercial broadcasters.

Conclusion:

FM transmitters are essential tools for radio stations to broadcast audio content across a broad area. Whether for small community stations, large-scale commercial broadcasters, or private use, FM transmitters provide reliable, high-quality audio transmission. Understanding the components, types, and regulatory environment surrounding FM transmitters is critical for anyone involved in radio broadcasting.

Let us know if you’d like to explore more details about specific FM transmitter brands, types, or how to set up a broadcast system!
