Complete FM radio station

A complete FM radio station setup includes a variety of equipment and systems that work together to produce and broadcast high-quality radio content to an audience. The process of running an FM radio station involves a combination of audio equipment, transmission gear, and support infrastructure to ensure smooth operation and optimal sound quality.

Key Components of a Complete FM Radio Station:

1. Audio Source / Content Creation:

• Microphones: Used by hosts, DJs, and announcers for live voice input. Professional-grade microphones are often used to ensure clear, high-quality sound.

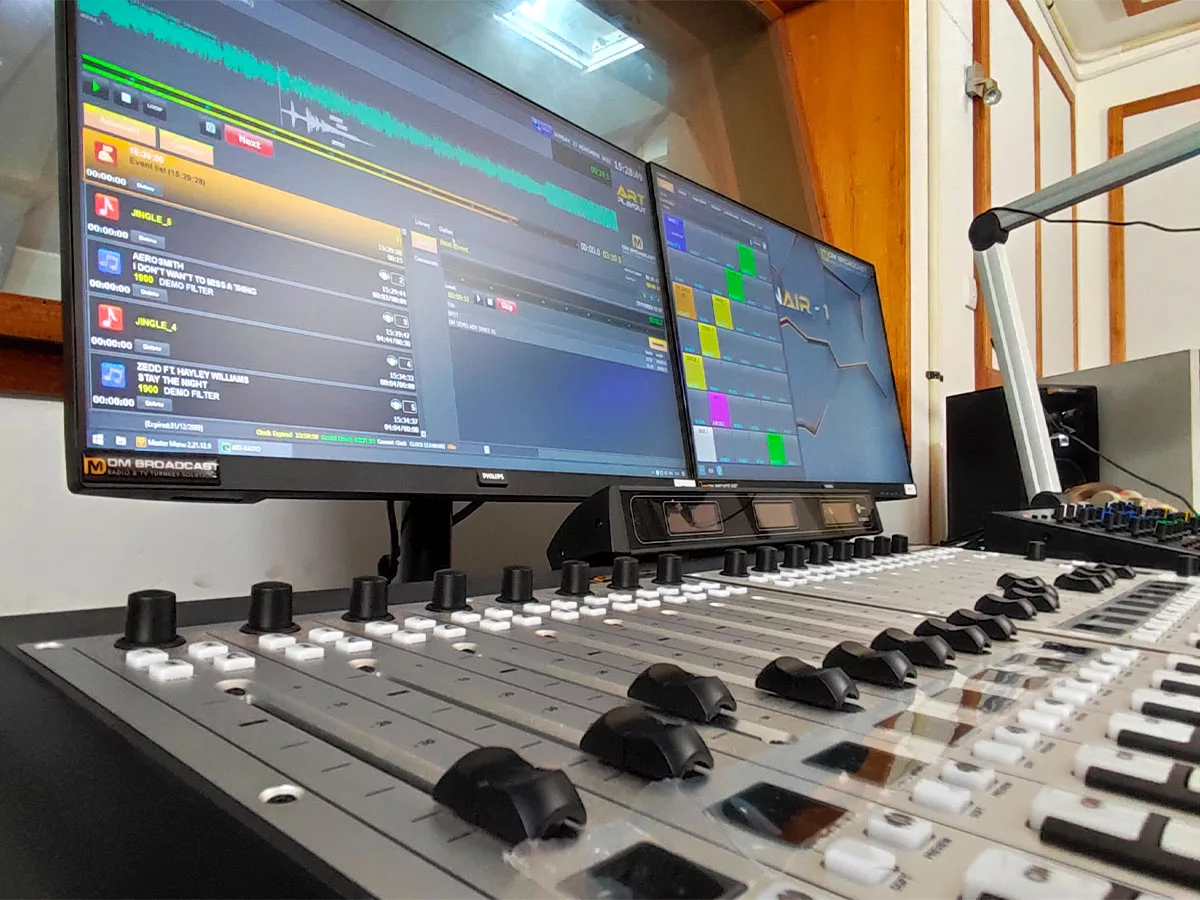

• Mixing Consoles: The mixing console is the central control unit where all audio sources (microphones, music, sound effects, pre-recorded content) are mixed and balanced for broadcast.
• Audio Processors: These processors enhance sound quality, applying compression, equalization, and limiting to ensure consistent audio levels and reduce distortion during transmission.

2. Studio Equipment:

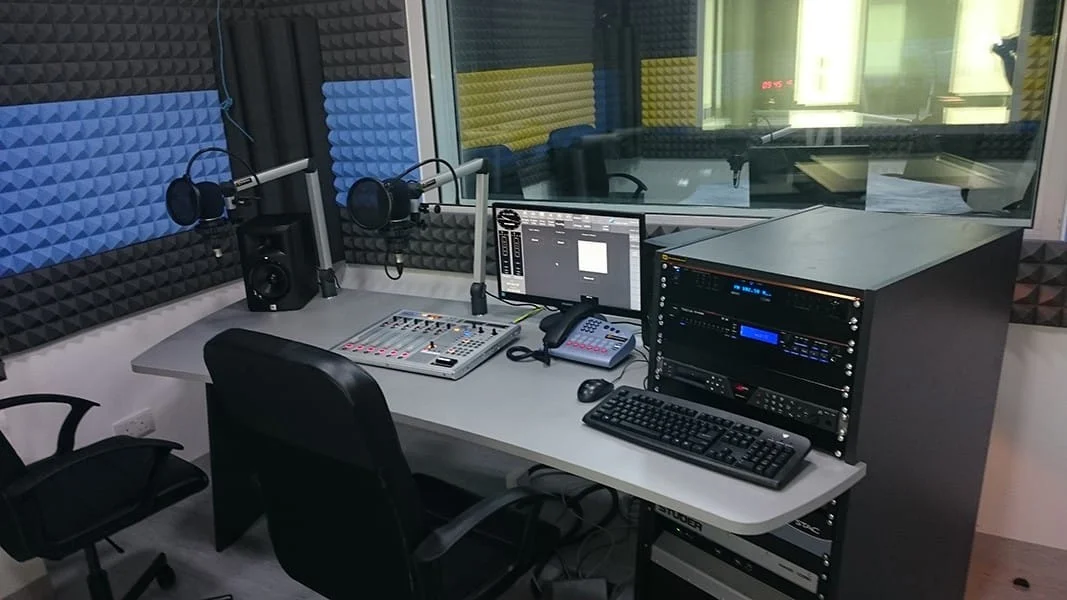

• Soundproofing & Acoustic Treatment: Studios are typically designed to minimize external noise and echo. Proper acoustic treatment ensures optimal sound quality during recording and broadcasting.
• Broadcast Software: Radio automation software controls the scheduling and playback of content, such as music, news, and pre-recorded segments. It often integrates with the station’s playlist and scheduling systems.
• On-Air Signaling System: This helps signal to the host when they are live, and it includes lights, timers, or signals to indicate when the station is broadcasting live content or automated programming.

3. Transmitting Equipment:

• FM Transmitter: The heart of the broadcast system, which modulates the audio signal onto a frequency carrier wave. The transmitter’s power output can range from a low-power unit (for small stations) to high-power systems (for large commercial stations).
• Exciter: Generates the initial RF (Radio Frequency) signal that the transmitter amplifies.
• FM Antenna: The antenna broadcasts the modulated signal over the air. It is typically installed on tall towers or buildings to extend the coverage area.
• Power Amplifiers: These are used to boost the RF signal power to ensure it can reach a larger audience. High-power transmitters are used for city-wide or regional coverage.
• Transmission Line / Coaxial Cable: Carries the RF signal from the transmitter to the antenna.

4. Transmission & Signal Control:

• RDS Encoder: For stations using Radio Data System (RDS), this device adds additional information (such as station name, song title, or traffic updates) to the FM signal. This information is displayed on compatible car and home radio receivers.
• Frequency Coordination: Stations must operate on an authorized frequency to avoid interference with other stations. A frequency coordination system ensures the station is broadcasting at the right frequency and power.

5. Broadcasting / Automation Software:

• Playout Automation System: This software is used to schedule and manage the playback of content such as music, advertisements, news, and other programming. It helps to automate the process when live broadcasting is not occurring.
• Program Scheduling Software: This allows stations to organize and schedule their broadcasts, ensuring a smooth flow of content.
• News/Traffic/Weather Feed: Some stations rely on external services to provide live traffic updates, news, and weather reports.

6. Monitoring and Backup Systems:

• Signal Monitoring: Ensures that the broadcast signal is being transmitted clearly and without interference. Monitoring systems help identify issues such as low signal strength or transmission failure.
• Backup Systems: Redundant power supplies, backup transmitters, and software ensure that the station can continue broadcasting even in the event of equipment failure.

7. Internet Streaming & Digital Infrastructure:

• Streaming Server: Many FM stations offer an online stream to reach listeners beyond their broadcast range. This includes setting up a server to stream the content live over the internet.
• Website & Social Media Integration: Radio stations also maintain websites and social media profiles to engage with listeners, promote content, and offer additional features like podcasts or on-demand streaming.

8. Broadcast Tower / Transmission Site:

• FM Radio Tower: A tall structure (often hundreds of feet) used to mount the FM antenna for the station. The height of the tower is essential for expanding the station’s coverage area, as higher antennas allow the signal to reach further.
• Transmission Site Facilities: These locations house the transmitter, backup systems, and other equipment. They are often situated at high points (mountains or tall buildings) to improve the broadcast range.

9. Broadcast Station Staffing:

• DJ/On-Air Talent: These are the personalities who present shows, interviews, and music. They are responsible for connecting with listeners and running live segments.
• Engineers/Technicians: Technical staff who maintain and troubleshoot the station’s equipment, including transmitters, automation systems, and broadcast gear.
• Program Directors: In charge of selecting and scheduling content, curating programming, and ensuring the station’s output aligns with its brand and target audience.
• Sales & Marketing Team: Responsible for securing advertising contracts, promotions, and building partnerships with local businesses or national advertisers.
• Administration & Legal: Ensures the station operates in compliance with regulatory requirements (like licensing, copyright, and broadcast regulations).

Complete FM Station Setup Breakdown:

FM Station Workflow Overview:

1. Content Creation: DJs, hosts, and producers create and curate content, such as live radio shows, music sets, and interviews.
2. Audio Processing: The audio is processed using mixers and processors to ensure it sounds clear and professional for broadcast.
3. Scheduling and Automation: Pre-recorded content is scheduled, and automated systems are set to play music or commercials when the station isn’t live.
4. Transmission: The audio signal is modulated onto an FM carrier signal by the transmitter, amplified, and sent through the antenna to cover the broadcast area.
5. Monitoring: Technicians monitor the quality of the signal and adjust if there are any issues with transmission or sound quality.
6. Internet Streaming: The station may also stream the broadcast over the internet to reach a wider audience.

Regulatory Considerations:

• Licensing: FM stations must be licensed by the relevant authority
• Broadcast Regulations: There are strict rules around content, such as the prohibition of indecency or obscenity, and requirements for fair play (e.g., the “equal time” rule).
• Copyright: Stations must comply with music licensing laws and may need to pay royalties for music they play.

Running a complete FM radio station involves a combination of creative, technical, and operational tasks. Stations typically need a strong team to handle programming, technical maintenance, and business operations.
